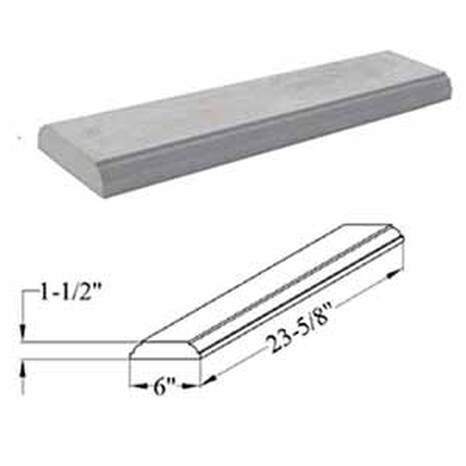

MD 001 "All Radius are inside measurements"
|
6" x 1-1/2" x 23-5/8"
6" - TE 6" - 12" R 6" - 18" R 6" - 2' R 6" - 3' R 6" - 5' R 6" - 6'6" R 6" - 7'6" R 6" - 9' 6" - 10' R 6" - 90 degree Corner 8" x 1-1/2" x 23-5/8"
|
MD 001A "All Radius are inside measurements"
|
3-1/2" x 2-1/2" x 23-5/8"
5" x 2-1/2" x 23-5/8" DOUBLE RETURN
7" x 1-1/2" x 23-5/8"
7" - RIGHT TE 7" - LEFT TE |
MD 002 "All Radius are inside measurements"
|

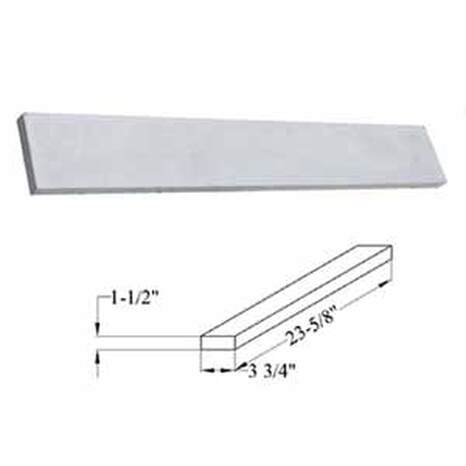

3-3/4" x 1-1/2" x 23-5/8"
5-1/4" x 1" x 40-3/8" 5-5/8" x 1-1/2" x 35-5/8" 6" x 1-1/2" x 35-5/8" |
MD 003 "All Radius are inside measurements"
|
5-3/8" x 2-1/2" x 35-5/8"
5-5/8" - 3'6" R 5-5/8" - 5" R 11-1/2" x 4" x 23-5/8"
|

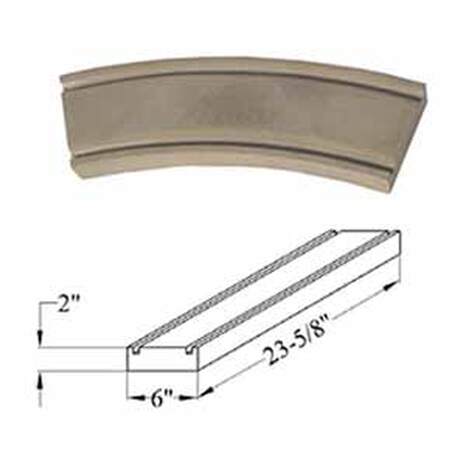

MD 004 "All Radius are inside measurements"
|
6" x 2" x 23-5/8"
6" - 18" R 6" - 2'6" R 6" - 6'4" R 8" x 2" x 23-5/8"
8" - 6' R 9-1/4" x 2" x 23-5/8"
|
MD 005 "All Radius are inside measurements"
|
4" x 2" x 36"
4" - 3' R 6" x 2" x 36"
6" - LEFT TE 6" - RIGHT TE 6" - 90 degree CORNER 6" - 24" R 6" - 38" R 6" - 52" R 6" - 4' x 16" ELLIPTICAL ARCH 6" - 6'4" ELLIPTICAL ARCH |
MD 006 "All Radius are inside measurements"
|
3" x 2" x 36"
6" x 3" x 35-5/8"
6" - DOUBLE TE 6" - 18" R 6" - 30" R 6" - 48" R 6" - 4' x 2' ELLIPTICAL ARCH 6" - LEFT 45 degrees 6" - RIGHT 45 degrees |
MD 007 "All Radius are inside measurements"
|
1-1/8" x 3-1/2" x 35-5/8"
1-1/8" x 90 degree CORNER 2" x 15" x 28"
2" - 21' R 2" x 12" x 3' - 2' R
2" - W/ KEYSTONE 2" LEFT RETURN ENDS 2" RIGHT RETURN ENDS |
WC 007A "All Radius are inside measurements"
|

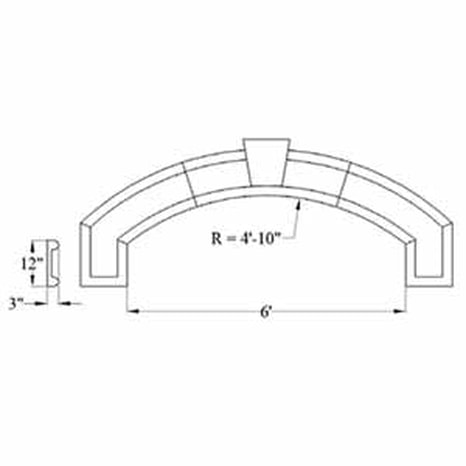

3" x 12" x 6' - 4' R W/ KEYSTONE
& W/ LEFT AND RIGHT RETURN ENDS |
WC 008 "All Radius are inside measurements"
|
4" x 4" x 35-5/8"
4" - 24" R 4" - 6'6" R 4" - 7'5" R |
WC 009 "All Radius are inside measurements"
|

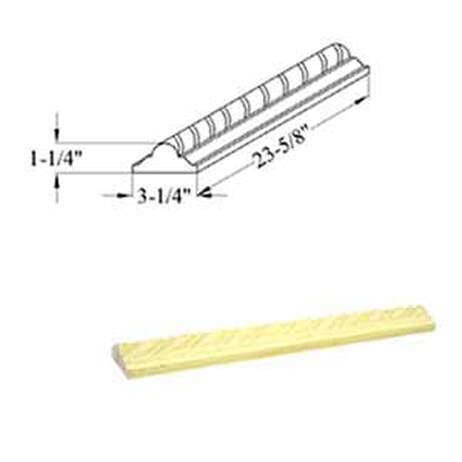

3-1/4" x 1-1/4" x 23-5/8"
|
WC 010
|
"Cypress Trim"

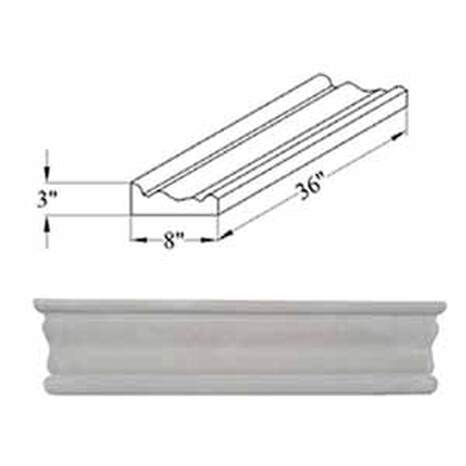

8" x 3" x 23-5/8" 8" x 3" x 35-5/8" |
WC 011
|
"Band Trim"

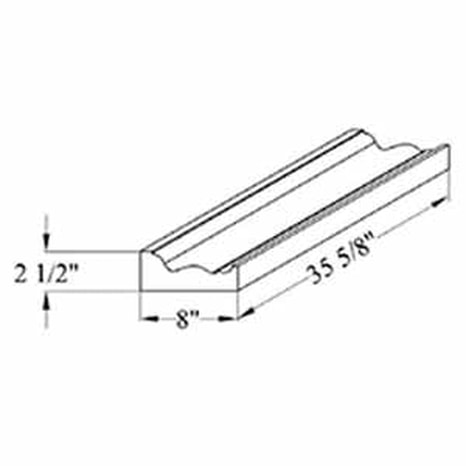

8" x 2-1/2" x 35-5/8" |
SILL 001
|
3" x 9" x 5'2"
5" x 3-1/2" x 42"

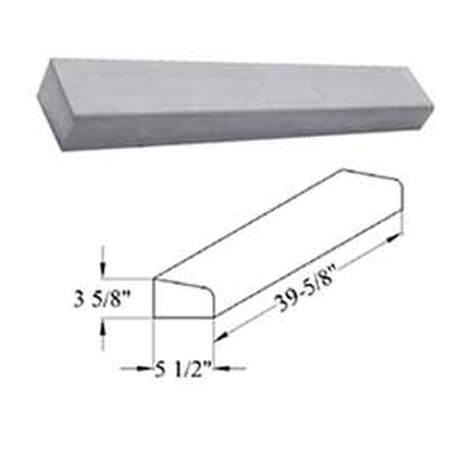

5-1/2" x 3-1/2" x 39-5/8"
5-1/2" - STRETCHER 5-1/2" - RIGHT RETURN 5-1/2" - LEFT RETURN 5-1/2" - 90 degree CORNER 5-1/2" x 4" x 23-5/8"
6" x 8" x 32"
8-1/2" x 1-3/4" x 24-5/8"
8-1/2" x 90 degree CORNER 10" x 4" x 23-1/2"
11-1/2" x 3-7/8" x 23-1/2"
|
SILL 002
|
4" x 3" x 41-1/2"
7-1/2" x 7-5/8" x 47-1/2"
7-1/2" x 8" x 32" 9-1/4" x 3-3/4" x 23-1/2"
10" x 3-1/2" x 31-3/8"
10" x 3-1/4" x 35-1/2" 11" x 7-5/8" x 23-5/8"
12" x 7-5/8" x 23-5/8" W/ DRIP
13" x 3" x 23-5/8"
13 x 3-1/4" x 48" 20-3/8" x 4-1/2" x 36"
|
SILL 002A
|
9-1/4" x 4" x 30"
|
SILL 002B
|
10" 4" x 29-3/8"
10" - 90 degree CORNER |
SILL 002C
|
9-1/2" x 4" x 4'8"

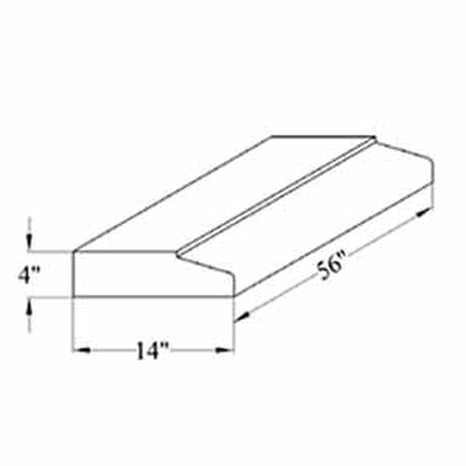

14" x 4" x 4'8" |
SILL 003
|

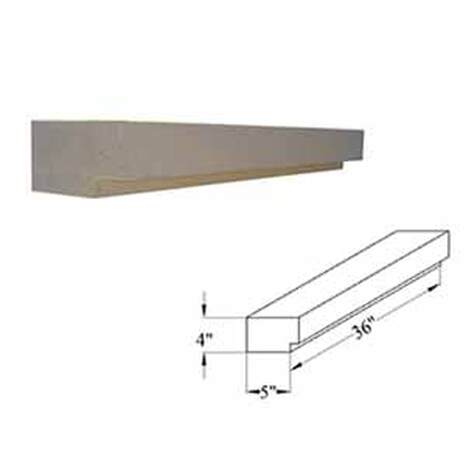

5" x 4" x 36"
5-1/2" x 2-1/2" x 28" |
SILL 004
|

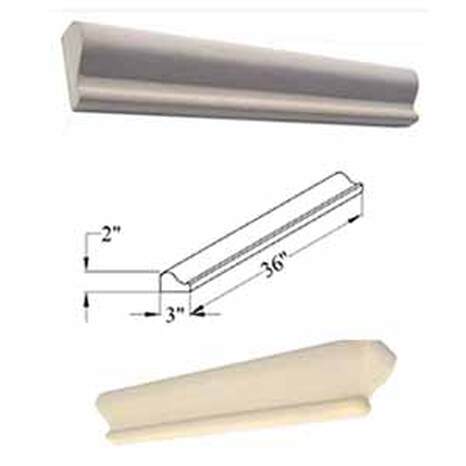

3-1/2" x 3" x 35-5/8"
3-1/2" - LEFT TE 3-1/2" - RIGHT TE 5-1/2" x 3" x 30"
5-1/2" - LEFT TE 5-1/2" - RIGHT TE |
SILL 004A
|
2" x 5" 48" - 6" R
|
SILL 004B
|
1-3/4" x 3-1/4" x 35-5/8"
1-3/4" - DOUBLE TE |
SILL 005
|

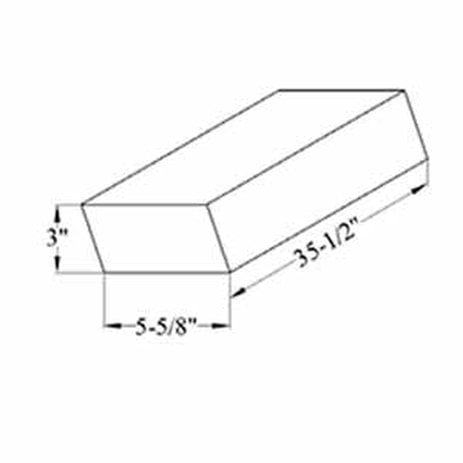

5-5/8" x 3" x 35-1/2"
|
SILL 006
|

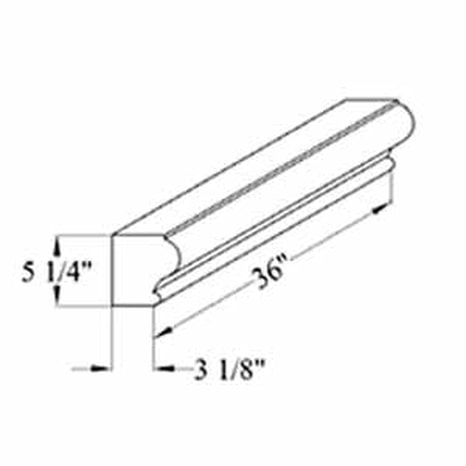

3-1/8" x 5-1/4" x 36"
|
SILL 007
|
7-1/2" x 6" 52"
|
SILL 008
|

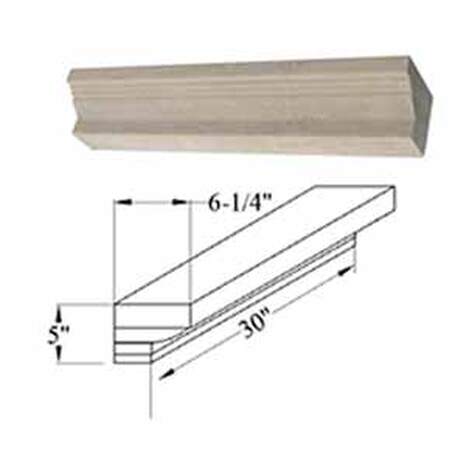

6-1/4" x 5" x 30"
6-1/2" - LEFT RETURN 6-1/2" - RIGHT RETURN 9" x 9" x 30"
8" 1'3" x 8'4" (9'7" OA) 2 Pc's |
SILL 008A
|
6-1/4" x 5" x 36" - LEFT RETURN
6-1/4" x 5" x 36" - RIGHT RETURN |
SILL 008B
|
4" x 7" x 30" - DOUBLE RETURN
|
SILL 009
|
(No information available at this time)
|
SILL 010
|

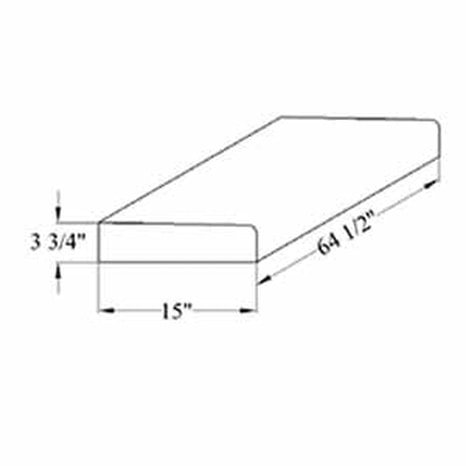

15" x 3-3/4" x 64-1/2"
|
SILL 011
|
10" x 6" x 5"
17" x 6" x 12" |
