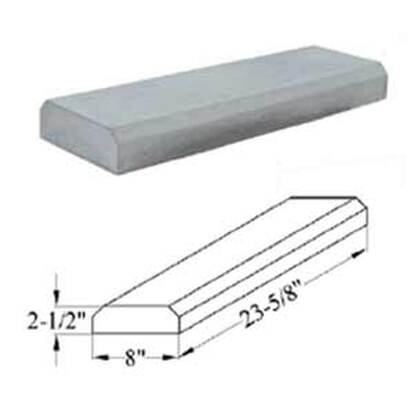

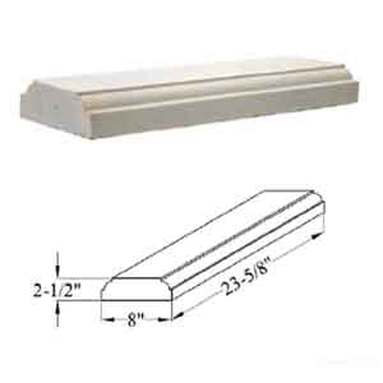

WC 001  All Radius are Inside Measurements
8" x 2-1/2" x 23-5/8"
8" - TERMINAL END
8" - 90° CORNER
8" - Rounded CORNER - 12"e RADIUS
8" - 2' 6" R
8" - 3' 6" R
8" - 8' R
8" x 5-1/4" x 23-5/8"
10" x 2-1/2" x 23-5/8"
10" - TERMINAL END
10" - 90° CORNER
10" - 20" R
10" - 2' 6" R
10" - 3' 6" R
10" - 4' R
10" - 5' R
10" - 6' R
10" - 6' 6" R
10" - 8' R
10" - 10' R
10" - 12' R
11" x 2-1/2" x 23-5/8" - SINGLE EDGE
11" - 4' 2" R - LEFT TERMINAL END - SINGLE EDGE
11" - 4' 2" R - RIGHT TERMINAL END - SINGLE EDGE
11" x 2-1/2" x 23-5/8" - 7' 8" R - DOUBLE EDGE
12" x 2-1/2" x 23-5/8"
12" - TERMINAL END
12" - 90° CORNER
12" - 2' 6" R
12" - 3' 6" R
12" - 19' 6" R
12" - 19' 6" R
12" x 2-1/2" x 18" - 4' R
12" x 2-1/2" x 18" - 6' R
14" x 2-1/2" x 23-5/8"
14" - TERMINAL END
14" - 90° CORNER
14" - 2' 3" R
16" x 2-1/2" x 23-5/8"
16" - TERMINAL END
16" - 90° CORNER
16" - 5' R
16" - 6' 6" R
16" - 10' R
18" x 2-1/2" x 23-5/8"
18" - TERMINAL END
18" - 90° CORNER
18" - 3' 6" R
18" - 5' R
18" - 6' R
18" - 12' R
20" x 2-1/2" x 23-5/8" - 5' R
20" x 2-1/2" x 23-5/8" - 25' R
24" x 2-1/2" x 23-5/8"
24" - TERMINAL END
24" - 90° CORNER

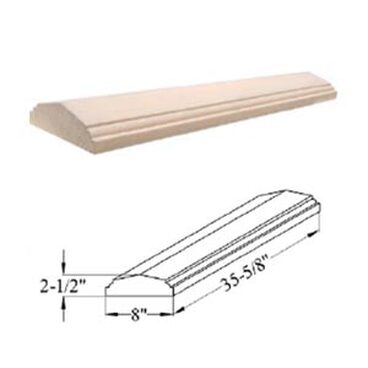

WC 001A  All Radius are Inside Measurements
8" x 2-3/8" x 35-5/8"
8" - TERMINAL END
8" - 90° CORNER
10" x 3" x 23-5/8"
10" - TERMINAL END
10" - 90° CORNER
WC 001B  All Radius are Inside Measurements
9" x 2-1/2"  x  23-5/8"

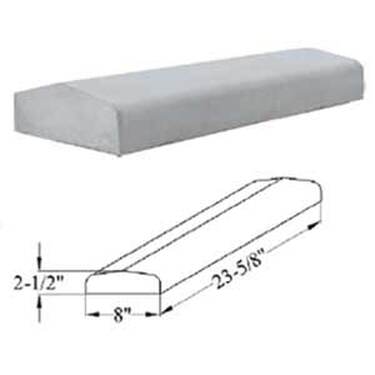

WC 002  All Radius are Inside Measurements
8" x 2" x 30"
8" x 2-1/2" x 23-5/8"
8" - TERMINAL END
8" - 90° CORNER
8" x 4" x 23-5/8"
9-1/2" x 3" x 23-5/8"
9-5/8" x 2-5/8" x 23-5/8"
10" x 2-1/2" x 23-5/8"
10" - TERMINAL END
10" - 90° CORNER
10" x 3-1/2" x 23-5/8"
10" x 4" x 23-5/8"
10" - TERMINAL END
10" x 5" x 23-5/8"
11-5/8" x 3" x 23-5/8"
12" x 2" x 30"
12" x 3" x 23-5/8"
12" - 9' 2" R
12" x 8" x 15-5/8"
12-1/2" x 4" x 23-5/8"
12-1/2" - TERMINAL END
12-3/8" x 3" x 25-5/8"
12-3/8" - TERMINAL END
12-3/8" - 7' 5-7/8" R
12-3/8" - 18' 1-7/8" R
13-1/8" x 3" x 23-5/8"
13-1/8" - TERMINAL END
14" x 2-1/2" x 23-5/8"
16" x 4" x 31"
16" x 5" x 23-5/8"
16" - TERMINAL END
16" - 9' 6" R
18" x 5" x 23-5/8"
18" x 5-3/8" x 23-5/8"
20" x 5-3/8" x 23-5/8" - 13'R
23" x 5-3/4" x 23-5/8"
23" - TERMINAL END
25-1/2" x 6-1/2" x 23-5/8" - TERMINAL END
31-1/2" x 2" x 23-5/8"
31-1/2" - TERMINAL END

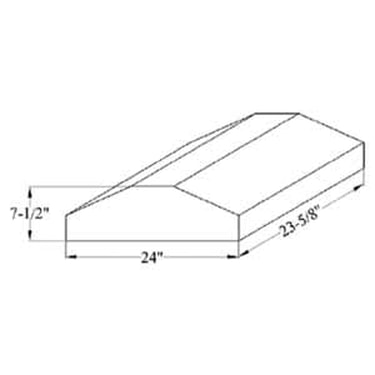

WC 002A  All Radius are Inside Measurements
24" x 7-1/2" x 23-5/8"
24" - TERMINAL END

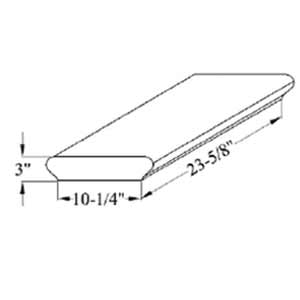

WC 003  All Radius are Inside Measurements
10-1/4" x 3" x 23-5/8"
10-1/4" - TERMINAL END
14" x 3" x 23-5/8"
14" - TERMINAL END

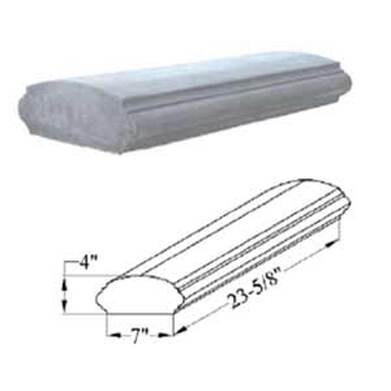

WC 003A  All Radius are Inside Measurements
7" x 3-3/4" x 23-5/8"
7" - TERMINAL END
7" - 90° CORNER
7" x 3-3/4" x 38" - 2' 6" R - LEFT TERMINAL END
7" x 3-3/4" x 38" - 2' 6" R - RIGHT TERMINAL END
9" x 4" x 23-5/8"
9" - TERMINAL END
9" - 90° CORNER
9" - 3' 9" R
9" - 4' R
9" - 6' R
9" - 13' R
12" x 3-3/4" x 23-5/8"
12" - TERMINAL END
WC 004  All Radius are Inside Measurements
8" x 2-1/2" x 23-5/8"
8" - TERMINAL END
8" - 14' 11" R
10" x 2-1/2" x 23-5/8"
10" - TERMINAL END
10" x 3-1/2" x 23-5/8"
12" x 2-1/2" x 23-5/8"
14" x 2-1/2" x 23-5/8"
15-1/2" x 2-1/2" x 23-5/8"
15-1/2" - TERMINAL END
15-1/2" - 12' R
20" x 4-1/2" x 23-5/8"
29" x 2-1/2" x 23-5/8"

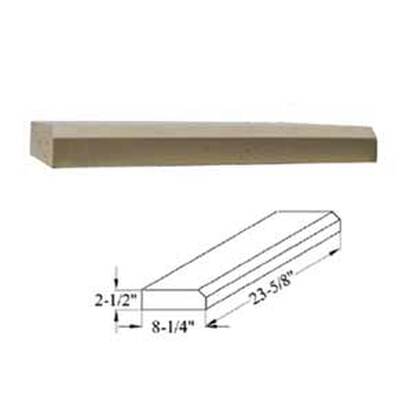

WC 004A  All Radius are Inside Measurements
8-1/4" x 2-1/2" x 23-5/8" (8-5/8" OA)
8-1/4" - RIGHT TERMINAL END (8-5/8" OA)
8-5/8" x 2-1/2" x 23-5/8"
8-5/8" - RIGHT TERMINAL END
9" x 2-1/2" x 23-5/8"
9" - RIGHT TERMINAL END
10" x 4" x 35-5/8"
10" - LEFT TERMINAL END
10" - RIGHT TERMINAL END
16" x 2-1/2" x 23-5/8"

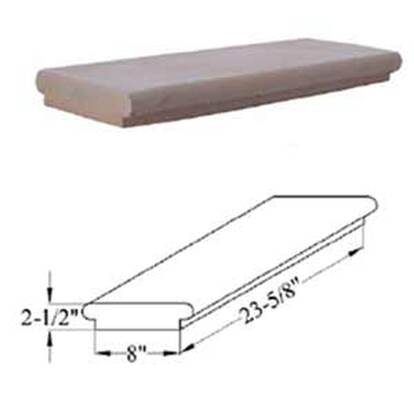

WC 005  All Radius are Inside Measurements
6" x 2" x 35-5/8"
6" - TERMINAL END
8" x 2-1/2" x 23-5/8"
8" - TERMINAL END
8" - 90° CORNER
8" - 4' R
8" - 6' R
10-1/2" x 2-1/2" x 23-5/8"
10-1/2" - TERMINAL END
10-1/2" - 90° CORNER
10-1/2" - 21" R
10-1/2" - 2' R
10-1/2" - 2' 6" R
10-1/2" - 3' R
10-1/2" - 5' 6"R
10-1/2" - 7' 6"R
10-1/2" - 10' 3"R
10-1/2" - 12' R
10-1/2" - 6" under R
12-1/2" x 2-1/2" x 23-5/8"
12-1/2" - TERMINAL END
12-1/2" - 90° CORNER
13" x 2-1/2" x 23-5/8"
13" - TERMINAL END
​13-1/4" x 2-1/4" x 23-5/8"
15" x 3" 23-5/8"
15" - 4' R
16" x 2-1/2" x 23-5/8" - 5' R
16-1/2" x 2-1/2" x 23-5/8" - 33' 3" R
18" x 2-1/2" x 23-5/8" - 4' 4" R
18" x 2-1/2" x 23-5/8" - 7' R
18" x 2-1/2" x 23-5/8" - 11' 2" R
20-5/8" x 3" 23-5/8"
24" x 3" x 23-5/8"
24" - TERMINAL END
24" - 93" R
WC 005A  All Radius are Inside Measurements
13" x 2-1/2" x 23-5/8"
13" x 3" x 23-5/8"
13-1/2" x 2-1/2" x 23-5/8" - 9' R
 8" x 2-1/2" x 23-5/8" - 2' 3" R
12" x 2-1/2" x 23-5/8"
12" - 90° CORNER
12" - 3' 3" R
12" 4' R
12" 17' R
14" x 4" x 23-5/8"
14" x 2-1/2" x 23-5/8" - 4' R
14" x 2-1/2" x 23-5/8" - 16' 6"R
15" x 2-1/2" x 23-5/8"
15-1/2" x 2-1/2" x 23-5/8"
15-1/2" - TERMINAL END
15-1/2" - 90° CORNER
15-1/2" - 1' 6" R
15-1/2" - 2' R
15-1/2" - 2' 6" R
15-1/2" - 3' R
15-1/2" - 3' 4" R
15-1/2" - 3' 6" R
15-1/2" - 5' R
15-1/2" - 5' 6" R
15-1/2" - 6' R
15-1/2" - 6' 6" R
15-1/2" - 7' R
15-1/2" - 7' 6" R
15-1/2" - 9' 6" R
15-1/2" - 12' R
15-1/2" - 15' R
15-1/2" - 15' 6" R
15-1/2" - 16' R
15-1/2" - 16' R - DOUBLE TERMINAL END
15-1/2" - 18' R
15-1/2" - 35' 6" R
15-1/2" - 38' 6" R
16" x 2-1/2" x 23-5/8" - 64-5/8" R
17-3/4" x 2-1/2" x 23-5/8" - 6' 3" R
18" x 2-1/2" x 23-5/8" - 6' 6" R
18" x 2-1/2" x 23-5/8" - 6' 6" R - DOUBLE TERMINAL END
21" x 2-1/2" x 23-5/8"
21" - TERMINAL END
21" - 90° CORNER
23-1/4" x 2-1/2" x 23-5/8" - 3' R
 26" x 2-1/2" x 23-5/8" - 6' R

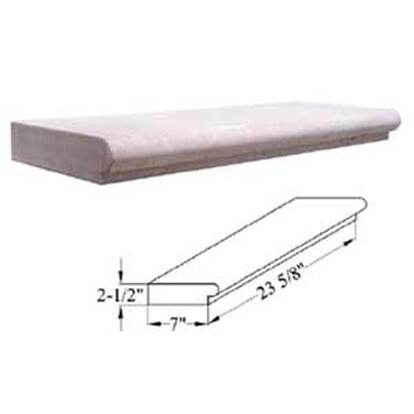

WC 005B  All Radius are Inside Measurements
7" x 2-1/2" x 23-5/8"
8" x 2-1/2" x 23-5/8"
8" - RIGHT TERMINAL END
8" - LEFT TERMINAL END
11" x 2-1/2" x 23-5/8"
15" x 3" x 23-5/8"
15" - RIGHT TERMINAL END
15" - LEFT TERMINAL END
19-1/4" x 3" x 25"
19-1/4" - LEFT TERMINAL END
19-1/4" - RIGHT TERMINAL END
25" x 3" x 23-5/8"

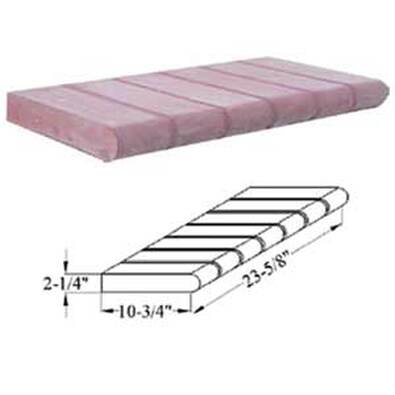

WC 005C  All Radius are Inside Measurements
10-3/4" x 2-1/4" x 23-5/8"
10-3/4" - 90° CORNER

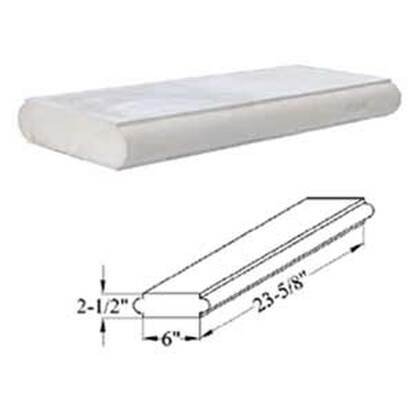

​WC 006  All Radius are Inside Measurements
6" x 2-1/2" x 23-5/8"
8" x 2-1/2" x 23-5/8"
8" - TERMINAL END
8" - Corner
8" - 6' R
8" - 15' R
9" x 2-1/2" x 23-5/8"
9" - TERMINAL END
9" - 90° CORNER
9" - 3' R
9" - 4' R
10" x 2-1/2" x 23-5/8"
11-1/2" x 2-1/2" x 23-5/8"
11-1/2" - TERMINAL END
11-1/2" - 90° CORNER
11-1/2" - 12' R
28" x 3" x 2"
28" - 20' R

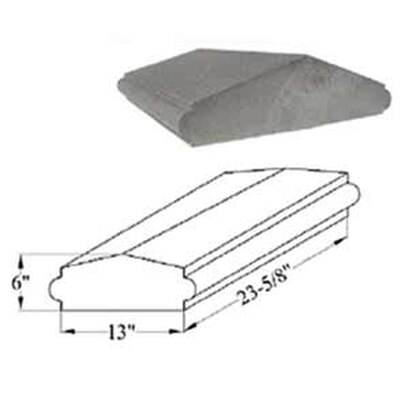

WC 006A  All Radius are Inside Measurements
13" x 6" x 23-5/8"
13" - TERMINAL END
20" x 6" x 23-5/8"
20" - TERMINAL END

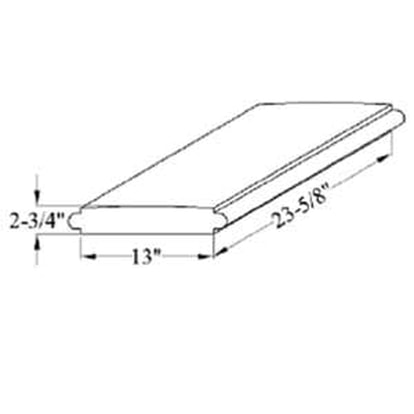

WC 006B All Radius are Inside Measurements
12-3/4" x 2-3/4" x 23-3/8"
WC 006C  All Radius are Inside Measurements
18-3/8" x 3-1/2" x 23-5/8" (20" OA)
18-3/8" - 90° CORNER
18-3/8" - 8'R

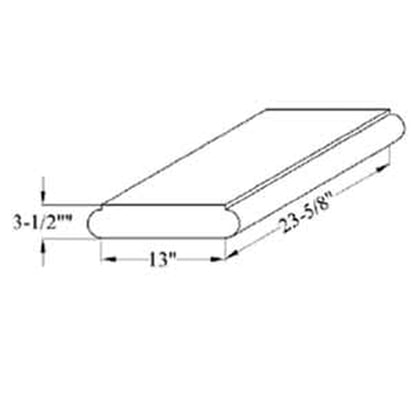

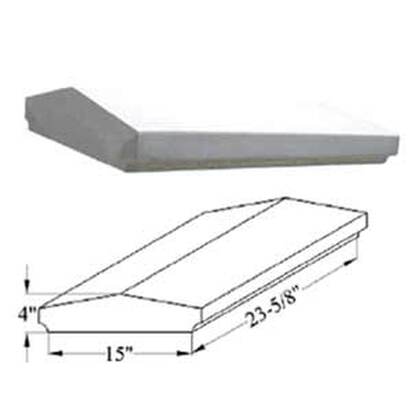

WC 007  All Radius are Inside Measurements
6-1/2" x 3-1/2" x 23-5/8"
12" x 4" x 23-5/8"
15" x 4" x 23-5/8"
18-3/4" x 4" x 23-5/8"

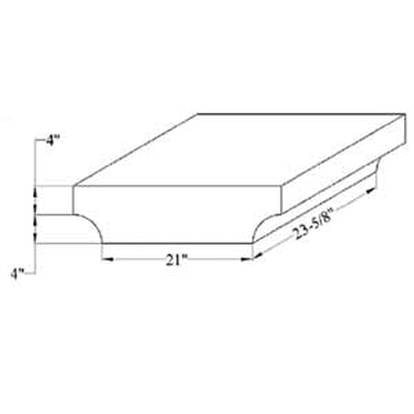

WC 007A  All Radius are Inside Measurements
21" x 8" x 23-5/8"
21" - TERMINAL END

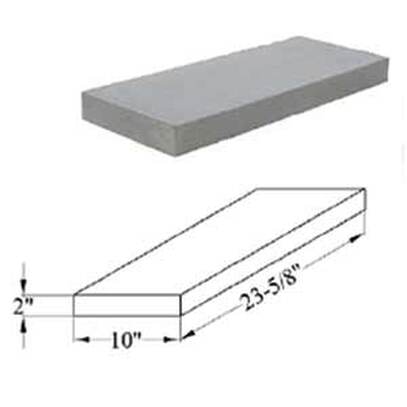

WC 008  All Radius are Inside Measurements
8" x 4" x 35-5/8"
8-1/4" x 2-1/2" x 23-5/8"
8-5/8" x 3" x 23-5/8"
10" x 2" x 23-5/8"
12" x 2" x 23-5/8"
12" x 3-1/2" x 23-5/8"
12" x 4" x 23-5/8"
13" x 4" x 23-5/8"
14" x 2-1/2" x 23-5/8"
16" x 4" x 23-5/8"
18" x 3-1/2" x 23-5/8"
18" x 4" x 23-5/8"
24" x 3-1/2" x 23-5/8"
24" x 4" x 23-5/8"
​WC 009AB  All Radius are Inside Measurements
"A and B"

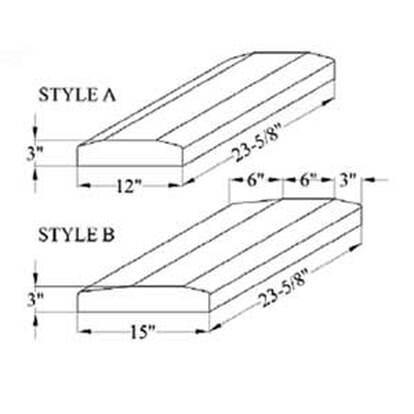

12" x 3" x 23-5/8"
15" x 3" x 23-5/8"

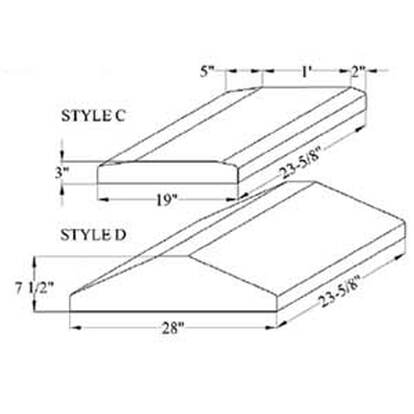

​WC 009CD  All Radius are Inside Measurements
19" x 3" 23-5/8"
19" - LEFT TERMINAL END
28" x 7-1/2" x 23-5/8"
28" - TERMINAL END

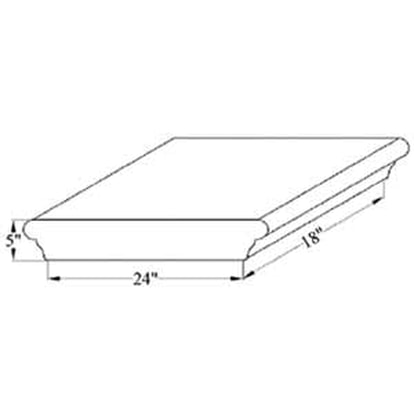

​WC 010  All Radius are Inside Measurements
20-1/4" x 5" x 18"
20-1/4" - FLAT TERMINAL END

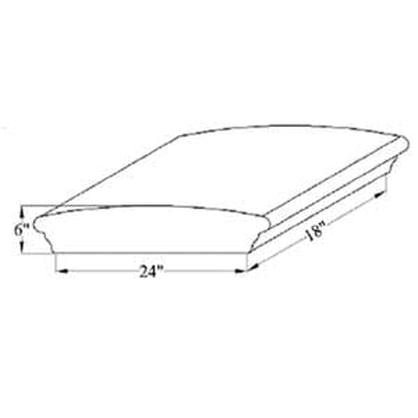

​WC 010A  All Radius are Inside Measurements
20-1/4" x 6" x 18"
20-1/4" - DOMED TERMINAL END

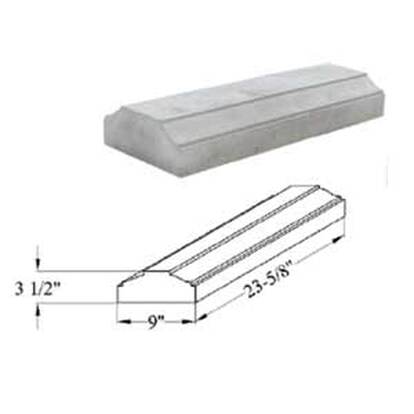

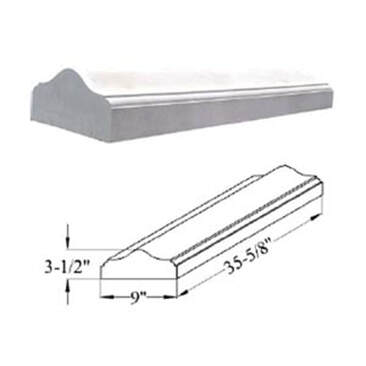

​WC 011  All Radius are Inside Measurements
9" x 3-1/2" x 23-5/8"
9" - TERMINAL END
9" - 90° CORNER
​WC 012  All Radius are Inside Measurements
8" x 1-1/2" x 35-1/2"

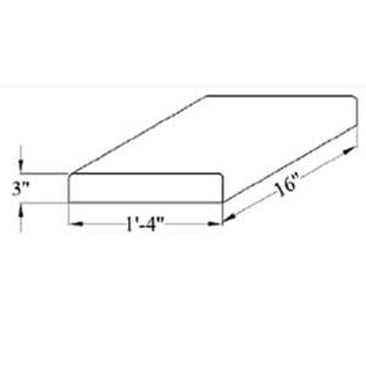

16" x 3" x 16"

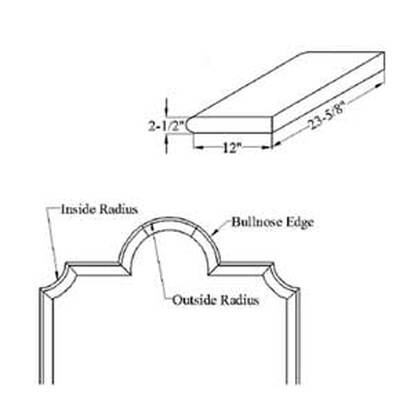

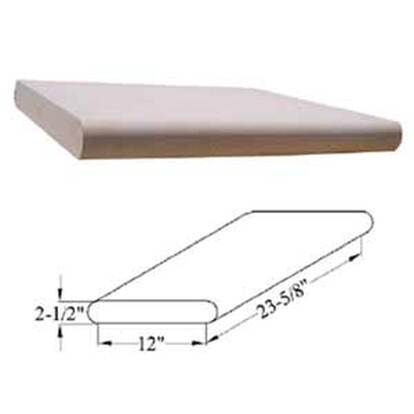

Coping 001 (SINGLE BULLNOSE)
12" x 2-1/2" x 23-5/8"
12" - 1' R (Inside)
12" - 1' 6" R (Outside)
12" - 2' R (Inside)
12" - 2' 6" R (Outside)
12" - 3' R (Inside)
12" - 3' R (Outside)
12" - 3' 9-1/2" R (Outside)
12" - 4' R (Inside)
12" - 4' R (Outside)
12" - 4' 3-1/2" R (Inside)
12" - 5' 6" R (Inside)
12" - 6' R (Inside)
12" - 6' R (Outside)
12" - 6' 3-1/2" R (Outside)
12" - 8' R (Inside)
12" - 8' 10-1/2" (Inside)
12" - 9' 6" R (Inside)
12" - 10' R (Inside)
12" - 10' 6" R (Inside)
12" - 12' R (Inside)
12" - 12' R (Outside)
12" - 12' 6" R (Inside)
12" - 13' 2" R (Outside)
12" - 13' 6" R (Outside)
12" - 15' R (Inside)
12" - 18' R (Inside)
12" - 18' R (Outside)
12" - 24' R (Inside)
12" - 25' R (Inside)
12" - 25' R (Outside)
12" - 40' R (Inside)
12-1/4" x 2-1/2" x 23-5/8" - 10' R
14" x 2-1/2" x 23-5/8"
14" - 6' R (Inside)
14" - 9' 6" R (Inside)
14" - 13' 2" R (Outside)
14" - 13' 6" R (Outside)
14" - 24' R (Inside)
15" x 2-1/2" x 23-5/8"
15" - 5' R (Outside)
(Please call to confirm inside/outside radius)
17-1/4" x 2-1/2" x 23-5/8" - 26' 3" R
17-1/4" x 2-1/2" x 23-5/8" - 27' 7" R
17-1/4" x 2-1/2" x 23-5/8" - 28' 11" R
17-1/4" x 2-1/2" x 23-5/8" - 30' 3" R
18" x 2-1/2" x 23-5/8" - 6' 3" R
23-3/4" x 2" x 36"
36" x 2-1/2" x 23-5/8"
**FOR DOUBLE BULLNOSE COPING, PLEASE SEE "WC005A"**
